SDS1022 20Mhz 100MSa/s 10K 2 channel Oscilloscope

SDS1022 20Mhz 100MSa/s 10K 2 channel Oscilloscope

SKU: SDS1022

The SDS1022 digital oscilloscope offers reliable measurement technology for a really good price.

Ideal for the workshop, hobbys or educational use.
The 7 "colour TFT LCD panel with a resolution of 800 × 480 allows excellent readability of the waveforms
It offers a 20 MHz bandwidth, a sampling rate of 100 MSa/s in dual channel and a memory depth of 10 K.
Supports SCPI and LabVIEW communications protocols.
Includes a USB port for connection to PC and as a host to connect a USB drive.

Supplied with 2 probes, USB cable, PC software, power cable and user manual.



Bandwidth: 20MHz
Sampling: 100MS / s
Display: 7 '' colour TFT display 800x480 pixels
Memory: 10 K
Maximum voltage: 400V (peak)
Time base: 5 nS / Div at 100 s / Div
Voltage difference And time difference between cursors

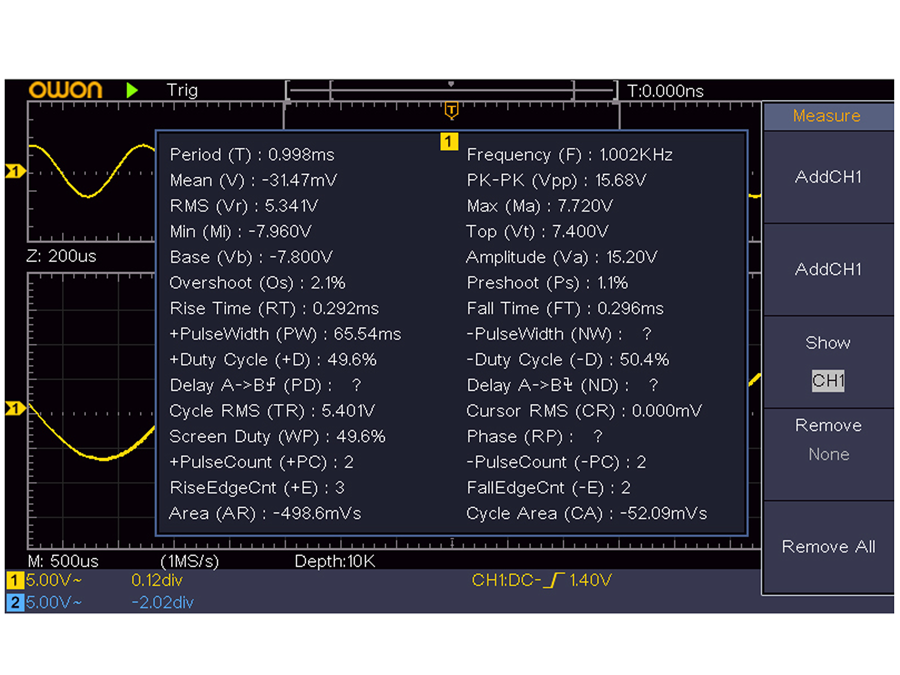

Vpp, Vmax, Vmin, Vtop, Vamp, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A? B Rising Edge, Delay A? B Falling Edge, + Width, -Width, + Duty, -Duty
Interfaces: USB PC Connection, USB Host for pendrives
Dimensions: 301 x 152 x 70 mm
Weight: 1.10 kg

Shipping Weight 1.6 kg
