Specifications
Oscilloscope specifications
Sample rate
500 MSa/s (single channel)
250 MSa/s (dual channel)
Memory depth
8 kpts (single channel)
4 kpts (dual channel)
Vertical resolution
8 bit
Trigger types
Edge
Waveform capture rate
10 000 wfms/s
Rise time
≤5 ns typ.
Vertical scale
10 mV/div - 10 V/div
Horizontal scale
5 ns/div - 1000 s/div
Measuring parameters (vertical)
Vmax, Vmin, Vpp, Mean, Amplitude
Measuring parameters (horizontal)
Period, Freq
Multimeter mode specifications
Specifications
Range
Accuracy (smallest range)
DC voltage
0.01 mV - 1000 V
±0.5% + 5
AC voltage
0.01 mV - 750 V
±0.8% + 5
DC current
10 μA - 10 A
±0.8% + 2
AC current
10 μA - 10 A
±1% + 5
Resistance
0.01 Ω - 100 MΩ
±0.8% + 3
Capacitance
1 pF - 2 mF
±3% + 10
Function generator mode specifications
Channels
1
Bandwidth
25 MHz
Amplitude
0.01 Vpp ~ 2.5 Vpp
Sample rate
125 MSa/s
Vertical resolution
14 bits
Waveform length
8 kpts
Frequency resolution
0.1 Hz
Waveform types
sine, square, ramp, pulse, sinc, bessely, besselj, stair up, stair down, stair up-down, att alt, amp alt
Other modes
Continuity, diode test
Display
20,000 counts (multimeter mode)
3.5" colour LCD (320 x 240)
Power supply
2x 18650 battery (approx. 6 hours)
Connectivity
USB-C
Dimensions
198 x 38 x 96 mm LxWxH
Weight
600 g (without batteries)
For more information, please refer to the user guide which you can download below.
Accessories

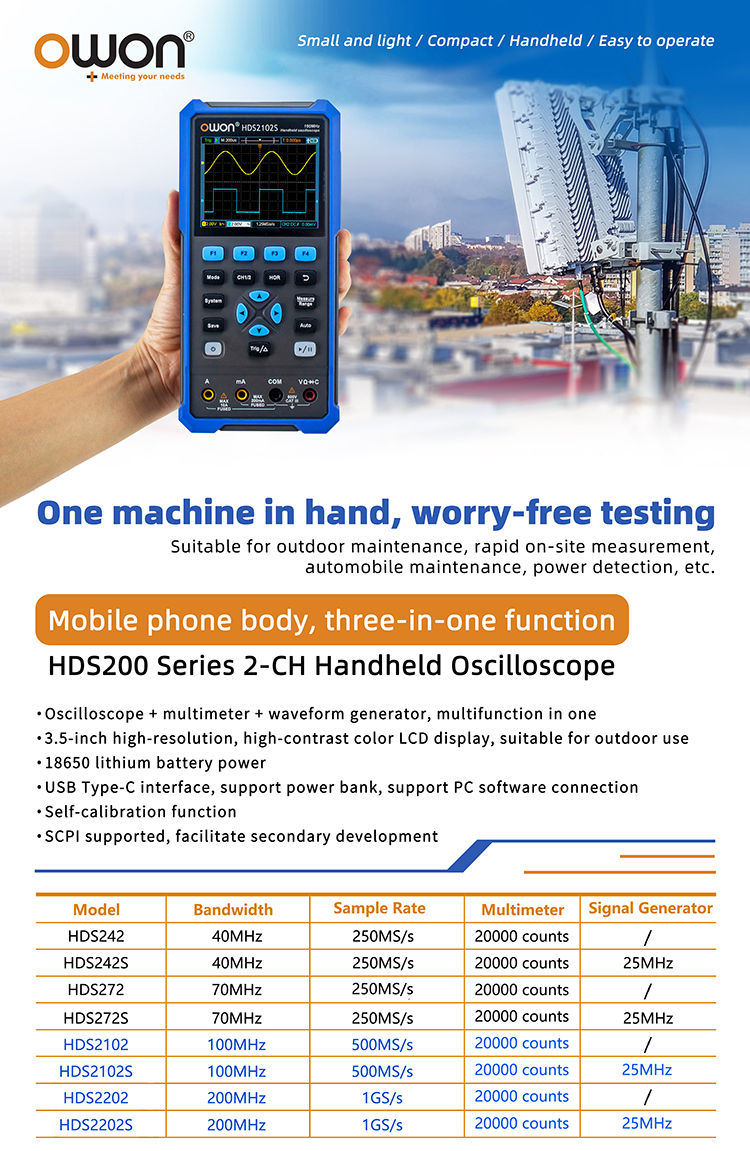

The HDS2102S comes by default with:
 2x 18650 batteries
 USB cable
 Set of test leads
 Probe
 2x BNC - alligator clips cable
 Power adapter
 Carrying pouch
